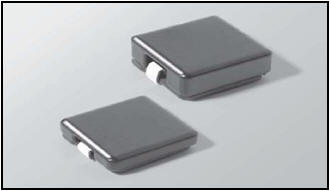

High Voltage CCFL Transformers
Standard Cold Cathode Fluorescent Lamp Inverter
Transformer
Key Benefits
- Proven Design
- Specially Tooled for Low Capacitance - High Voltage
- Transformers 100% Burn-In tested
|
Part Number |
Inductance |
DCR PRI |
DCR SEC |
Turn Ratio |
Vin (max) |
Vout (max) |
Irms (mA) |
Rated Wattage |
|
OB10255 |
44 uH |
0.22 |
280 |
67 |
20 |
1300 |
50mA |
2.5 |
|
OB10257 |
27 uH |
0.21 |
280 |
86 |
15 |
1300 |
50mA |
2.5 |
|
OB10259 |
20 uH |
0.19 |
280 |
100 |
12 |
1300 |
50mA |
2.5 |
|
OB10403 |
44 uH |
0.18 |
165 |
50 |
25 |
1300 |
70mA |
4 |
|
OB10407 |
27 uH |
0.22 |
220 |
86 |
15 |
1300 |
70mA |
4 |
|
OB10409 |
20 uH |
0.28 |
220 |
100 |
12 |
1300 |
70mA |
4 |
|
OB10411 |
20 uH |
0.38 |
330 |
125 |
9.5 |
1300 |
70mA |
4 |
|
OB10603 |
44 uH |
0.61 |
132 |
50 |
25 |
1300 |
110mA |
6 |
|
OB10605 |
44 uH |
0.82 |
175 |
67 |
20 |
1300 |
110mA |
6 |
|
OB10607 |
27 uH |
1.10 |
175 |
86 |
15 |
1300 |
110mA |
6 |
|
OB10608 |
20 uH |
1.88 |
175 |
100 |
13 |
1300 |
110mA |
6 |
|
OB10611 |
20 uH |
2.34 |
290 |
125 |
10.5 |
1300 |
110mA |
6 |
|
OB10613 |
10 uH |
3.30 |
291 |
250 |
6.0 |
1300 |
110mA |
6 |
Please contact OBP Engineering for custom wound solutions
|
