Hall-Effect Transducers

OBP Magnetics, Inc is the exclusive Unites States distributor of Chung Hing Industries Hall-Effect Current Transducers.

Please browse our on-line catalogue. You can also open or download individual data sheets.

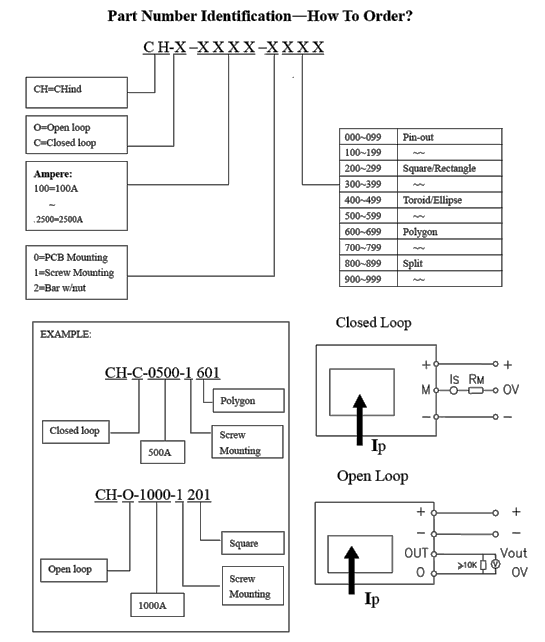

Amps	OBP / Chung Hing Part #	LEM Part #	Amps	OBP / Chung Hing Part #	LEM Part #
25 A	CH-C-0025-0003	LA 25-NP/SP14	100 A	CH-C-0100-1201	-
25 A	CH-C-0025-0004	LA 25-NP/SP13	100 A	CH-C-0100-1602	-
1 A	CH-C-0001-0001	LA 25-NP/SP11	100 A	CH-C-0100-1601	-
25 A	CH-C-0025-0005	LA 25NP/SP9	100 A	CH-C-0100-1604	-
2 A	CH-C-0002-0001	LA 25-NP/SP8	100 A	CH-C-0100-1603	-
25 A	CH-C-0025-0006	LA 25-NP/SP7	125 A	CH-C-0125-0601	LA 125-P
5 A	CH-C-0005-0001	LA 25-NP	125 A	CH-C-0125-0602	LA 125-P/SP1
6 A	CH-C-0006-0001	LA 25-NP	200 A	CH-C-0200-0601	LA 200-P
6 A	CH-C-0006-0201	LTSR 6-NP	200 A	CH-C-0200-1401	LTS 208-S7
6 A	CH-C-0006-0202	LTS 6-NP	200 A	CH-C-0200-1601	LF 205-S
7 A	CH-C-0007-0001	LA 35-NP	200 A	CH-C-0200-1602	-
8 A	CH-C-0008-0001	LA 25-NP	200 A	CH-C-0200-1603	-
8 A	CH-C-0008-0002	LA 35-NP	200 A	CH-C-0200-1604	-
8 A	CH-C-0008-0003	LAH 25-NP	200 A	CH-C-0200-1201	-
11 A	CH-C-0011-0001	LA 35-NP	300 A	CH-C-0300-1601	TBA
12 A	CH-C-0012-0001	LA 25-NP	300 A	CH-C-0300-1602	-
12 A	CH-C-0012-0002	LAH 25-NP	300 A	CH-C-0300-1603	-
15 A	CH-C-0015-0201	LTS 15-NP	300 A	CH-C-0300-1604	LA 305-S/SP8
15 A	CH-C-0015-0202	LTSR 15-NP	300 A	CH-C-0300-1201	-
17 A	CH-C-0017-0001	LA 35-NP	300 A	CH-C-0300-1401	LT 308-S7
25 A	CH-C-0025-0001	LA 25-NP	400 A	CH-C-0400-1201	LF305-S/SP13
25 A	CH-C-0025-0002	LAH 25-NP	400 A	CH-C-0400-1601	-
25 A	CH-C-0025-0007	LA 25-NP/SP2	400 A	CH-C-0400-1602	-
25 A	CH-C-0025-0201	LTS 25-NP	400 A	CH-C-0400-1603	-
25 A	CH-C-0025-0202	LTSR 25-NP	500 A	CH-C-0500-1601	LT 505-S
25 A	CH-C-0025-0401	-	500 A	CH-C-0500-1602	LA305-S/SP1
35 A	CH-C-0035-0001	LA 35-NP	500 A	CH-C-0500-1603	LF 505-S
35 A	CH-C-0035-0002	-	500 A	CH-C-0500-1604	-
35 A	CH-C-0035-0401	-	600 A	CH-C-0600-1601	LF505-S/SP25
50 A	CH-C-0050-0001	LAH 50-NP	800 A	CH-C-0800-1603	-
50 A	CH-C-0050-0201	LA58-P/LA55-P	1000 A	CH-C-1000-1601	LF1005-S/SP25
50 A	CH-C-0050-0202	LA 55-P/SP1	1000 A	CH-C-1000-1602	LF 1005-S
50 A	CH-C0050-0203		1000 A	CH-C-1000-1603	LT 1005-S
50 A	CH-C-0050-0401	-	800 A	CH-C-0800-1401
50 A	CH-C-0050-1201	-	366 A	CH-C-0366-1201	LF 305-S/SP13
50 A	CH-C-0050-1601	-	550 A	CH-C-0550-1601	LF 505-S/SP26
100 A	CH-C-0100-0001	LAH 100-P	941 A	CH-C-0941-1601	LF1005-S/SP25
100 A	CH-C-0100-1401	LTS 108-S7	941 A	CH-C-0941-1602
100 A	CH-C-0100-0201	LA 100-P	125 A	CH-C-0125-0001	LAH 125-P
100 A	CH-C-0100-0202	LA100-P/SP13	200 A	CH-C-0200-1605	-
100 A	CH-C-0100-0601	-	400 A	CH-C-0400-1604	-
			500 A	CH-C-0500-1605	-

Amps	OBP / Chung Hing Part #	LEM Part #	Amps	OBP / Chung Hing Part #	LEM Part #
1 A	CH-O-0001-0401	-
3 A	CH-O-0003-0001	HX 03-P	3000 A	CH-O-3000-1203	-
5 A	CH-O-0005-0001	HX 05-P	800 A	CH-O-0800-1202	HAT 800-S
10 A	CH-O-0010-0001	HX 10-P	200 A	CH-O-0200-1203	HAL 200-S
15 A	CH-O-0015-0001	HX 15-P	300 A	CH-O-0300-1203	HAL 300-S
20 A	CH-O-0020-0001	HX 20-P	100 A	CH-O-0100-1203	HAL 100-S
20 A	CH-O-0020-0002	-	400 A	CH-O-0400-1203	HAL 400-S
25 A	CH-O-0025-0001	HX 25-P	100 A	CH-O-0100-1403	-
50 A	CH-O-0050-0001	HX 50-P	100 A	CH-O-0100-1404
50 A	CH-O-0050-0002	-	200 A	CH-O-0200-1403	-
50 A	CH-O-0050-1202	HAS 50-S	300 A	CH-O-0300-1403	-
100 A	CH-O-0100-1201	HAC 100-S	300 A	CH-0-0300-1404	-
100 A	CH-O-0100-1202	HAS 100-S	400 A	CH-O-0400-1203	-
100 A	CH-O-0100-1401	HTA 100-S	400 A	CH-O-0400-1403	-
100 A	CH-O-0100-1402	-	400 A	CH-O-0400-1404	-
225 A	CH-O-0225-1402	CSLA1DJ	500 A	CH-O-0500-1403	-
200 A	CH-O-0200-0201	-	500 A	CH-O-0500-1404	-
200 A	CH-O-0200-0601	-	1000 A	CH-O-1000-1403	-
200 A	CH-O-0200-1201	HAC 200-S	100 A	CH-O-0100-1404	DHR-C420
200 A	CH-O-0200-1202	HAS 200-S	200 A	CH-O-0200-1404	DHR-C420
200 A	CH-O-0200-1401	HTA 200-S	300 A	CH-O-0300-1404	DHR-C420
300 A	CH-O-0300-1201	HAC 300-S	400 A	CH-O-0400-1404	DHR-C420
300 A	CH-O-0300-1202	HAS 300-S	500 A	CH-O-0500-1404	DHR-C420
300 A	CH-O-0300-1401	HTA 300-S	600 A	CH-O-0600-1404	DHR-C420
300 A	CH-O-0300-1402	-	1000 A	CH-O-1000-1404	DHR-C420
400 A	CH-O-0400-1201	HAC 400-S	150 A	CH-C-0150-0201	LA 150-P
400 A	CH-O-0400-1202	HAS 400-S	300 A	CH-C-0300-1605	ES 300C
400 A	CH-O-0400-1401	HTA 400-S	500 A	CH-C-0500-1607	ES 500F
400 A	CH-O-0400-1402	CSLA2DKI	500 A	CH-C-0500-1606	ES 500-9672
500 A	CH-O-0500-1201	HAT 500-S	1000 A	CH-C-1000-1604	ES 1000C
500 A	CH-O-0500-1202	HAS 500-S	2000 A	CH-C-2000-1401	ES 2000C
500 A	CH-O-0500-1203	HAX 500-S	50 A	CH-C-0050-0002	LAH 50-P
500 A	CH-O-0500-1401	HTA 500-S	500 A	CH-C-0500-1201	T60404-N4644-X052
600 A	CH-O-0600-1201	HAC 600-S	700 A	CH-C-0700-1201	T60404-N46644-X054
600 A	CH-O-0600-1202	HAS 600-S	200 A	CH-C-0200-1607	-
600 A	CH-O-0600-1401	HTA 600-S	300 A	CH-C-0300-1606	LF 205-S/SP29
600 A	CH-O-0600-1403	-	300 A	CH-C-0300-1607	LF 305-S
800 A	CH-O-0800-1201	HAC 800-S	1000 A	CH-C-1000-1604
800 A	CH-O-0800-1202		1000 A	CH-C-1000-1605	LF 1005-S/SP16
800 A	CH-O-0800-1401	HTA 800-S	1000 A	CH-C-1000-1606
1000 A	CH-O-1000-1201	HAT 1000-S	2000 A	CH-C-2000-1401
1000 A	CH-O-1000-1203	HAX 1000-S	2000 A	CH-C-2000-1402	LF 2005-S/SP6
1000 A	CH-O-1000-1401	HTA 1000-S	100 A	CH-C-0100-0002	LAS 100-TP
1000 A	CH-O-1000-1404		125 A	CH-C-0125-0201	T6040-N7644-X201
1500 A	CH-O-1500-1201	HAT 1500-S	100 A	CH-C-0100-1605	ES 100C
1500 A	CH-O-1500-1203	HAX 1500-S	500 A	CH-C-0500-1608	ES 500C
2000 A	CH-O-2000-1201	HAX 2000-S	17 A	CH-C-0017-0401	-
2500 A	CH-O-2500-1201	HAX 2500-S	25 A	CH-C-0025-0008	-
125 A	CH-C-0125-0603	-	25 A	CH-C-0025-0009
300 A	CH-C-0300-1402	-	200 A	CH-C-0200-1608
300 A	CH-C-0300-1608	-
