 CURRENT SENSORS

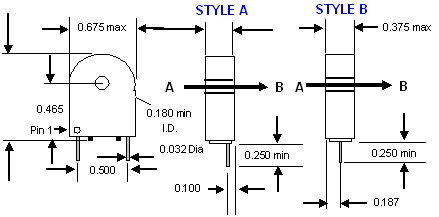

                     0SC1000 Series

 Features

  • Output Voltage is 1v/A with the terminating resistor and is linear over the specified range
  • Hipot breakdown is 3750 Volts from winding to Test Wire A-B.
  • Materials meet UL class B
  • Polarity Indicator <This lead is in phase with "A" of conductor A-B





 PART NUMBERING



Part Number Inductance Min (mH) 10KHz@250mV Turns  +/- 1% Current Range AMPS DCR OHMS +/- 15% Terminating Resistor Frequency Range
OCS-1050-ABM 5.6 mH 50 1-10 0.6 50 OHMS 20 - 100 KHz
OCS-1050-BBM 5.6 mH 50 1-10 0.6 50 OHMS 20 - 100 KHz
OCS-1100-ABM 22.4 mH 100 2-20 1.3 100 OHMS 20 - 100 KHz
OCS-1100-BBM 22.4 mH 100 2-20 1.3 100 OHMS 20 - 100 KHz
OCS-1200-ABM 89.7 mH 200 4-40 3.3 200 OHMS 20 - 100 KHz
OCS-1200-BBM 89.7 mH 200 4-40 3.3 200 OHMS 20 - 100 KHz

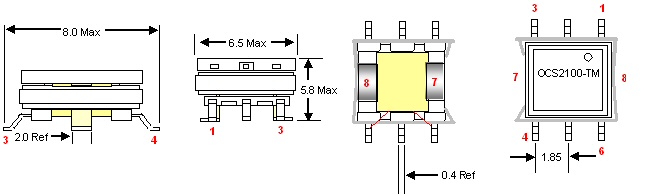

                                        0SC2000 Series



 Features

  • Operating Temp: -40 to +180 degrees C
  • Hipot breakdown is 1500 Volts3mA 1Sec
  • Materials meet UL class H



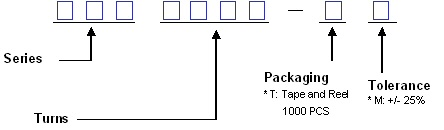

 PART NUMBERING

Part Number Inductance (Secondary) Pin 6-4 10KHz@0.1V Secondary Turns         +/- 1% Primary Current Range AMPS Secondary DCR OHMS +/- 15% Terminating Resistor Frequency Range
OCS-2050-TM 0.7 mH 50 20 1.1 100 OHM 20 - 300 KHz
OCS-2070-TM 1.3 mH 70 20 2.7 100 OHM 20 - 300 KHz
OCS-2100-TM 2.7 mH 100 20 4.5 100 OHM 20 - 300 KHz

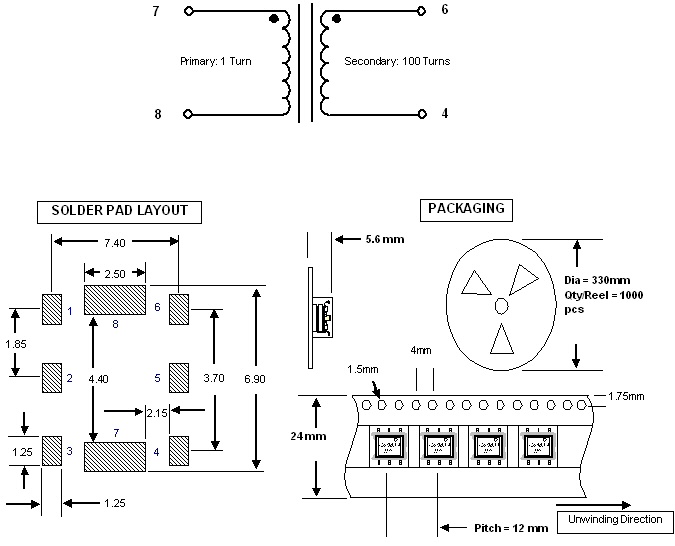

 SCHEMATIC
