 HI-TEMP
TOROID INDUCTORS

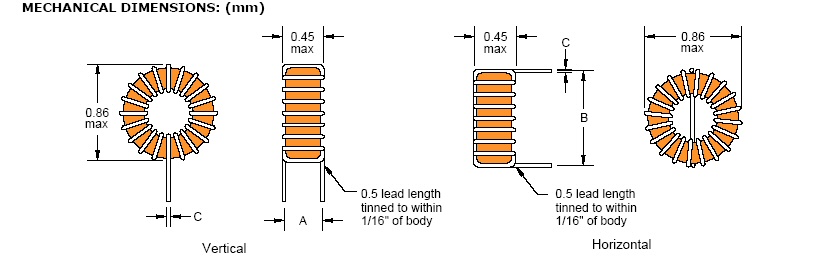

OB2100HT SERIES
Key Benefits
- +200 ºC Rated High Temperature
Series
- Toroidal design minimizes EMI and crosstalk
- UL94V-0 Flammability rating approved
- Designed for Dielectric strength voltage of 500Vrms
- Operating Temp: -55 to +200º C
- Available in Vertical and Horizontal mount designs
- Very low core loss
Applications
EMI Line Filtering for general electronics. Ideal for
use in automotive electronics operating at harsh temperature environments. Also
ideally suited for industrial, PLCC, avionics and ballast applications.
|
Part Number |
Inductance L(uH) @ 1KHz +/- 15% |
Current IDC (Amps) |
Inductance L(uH) @ I Rated +/- 15% |
DCR MAX (Ohms) |
|
OB2101HT-█ |
10 uH |
10.8 |
6.3 |
0.007 |
|
OB2102HT-█ |
12 uH |
10.3 |
7.4 |
0.012 |
|
OB2103HT-█ |
15 uH |
7.7 |
10.2 |
0.013 |
|
OB2104HT-█ |
18 uH |
7.4 |
11.9 |
0.015 |
|
OB2105HT-█ |
22 uH |
7.0 |
14.2 |
0.026 |
|
OB2106HT-█ |
27 uH |
5.3 |
19.1 |
0.029 |
|
OB2107HT-█ |
33 uH |
5.0 |
22.8 |
0.032 |
|
OB2108HT-█ |
39 uH |
4.8 |
26.4 |
0.055 |
|
OB2109HT-█ |
47 uH |
3.6 |
34.7 |
0.060 |
|
OB2110HT-█ |
56 uH |
3.4 |
40.6 |
0.130 |
|
OB2111HT-█ |
68 uH |
3.3 |
48.3 |
0.150 |
|
OB2112HT-█ |
100 uH |
2.4 |
75.2 |
0.062 |
|
OB2113HT-█ |
120 uH |
2.2 |
84.3 |
0.110 |
|
OB2114HT-█ |
150 uH |
2.2 |
88.5 |
0.175 |
|
OB2115HT-█ |
180 uH |
2.2 |
113.1 |
0.195 |
|
OB2116HT-█ |
220 uH |
2.2 |
134.4 |
0.210 |
|
OB2117HT-█ |
270 uH |
1.8 |
181.6 |
0.230 |
|
OB2118HT-█ |
330 uH |
1.7 |
216.3 |
0.250 |
|
OB2119HT-█ |
390 uH |
1.6 |
250.1 |
0.280 |
|
OB2120HT-█ |
470 uH |
1.5 |
293.8 |
0.300 |
|
OB2121HT-█ |
560 uH |
1.4 |
341.5 |
0.330 |
|
OB2122HT-█ |
680 uH |
1.4 |
403.2 |
0.370 |
|
OB2123HT-█ |
820 uH |
1.3 |
472.8 |
0.400 |
|
OB2124HT-█ |
1000 uH |
1.3 |
559.2 |
0.460 |
|
█ Substitute "H" for Horizontal Package or "V"
for Vertical Package |

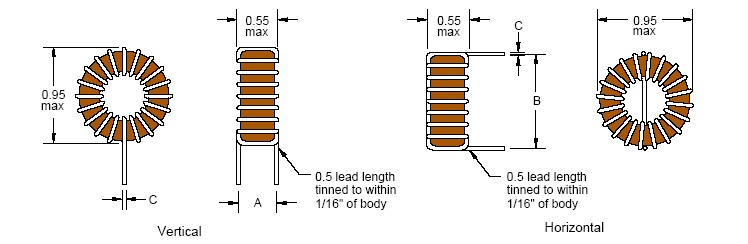

OB2200HT SERIES
Key Benefits
- +200 ºC Rated High Temperature
Series
- Toroidal design minimizes EMI and crosstalk
- UL94V-0 Flammability rating approved
- Designed for Dielectric strength voltage of 500Vrms
- Operating Temp: -55 to +200º C
- Available in Vertical and Horizontal mount designs
- Very low core loss
Applications
EMI Line Filtering for general electronics. Ideal for
use in automotive electronics operating at harsh temperature environments. Also
ideally suited for industrial, PLCC, avionics and ballast applications.
|
Part Number |
Inductance L(uH) @ 1KHz +/- 15% |
Current IDC (Amps) |
Inductance L(uH) @ I Rated +/- 15% |
DCR MAX (Ohms) |
|
OB2201HT-█ |
10 uH |
12.50 |
6.7 |
0.008 |
|
OB2202HT-█ |
12 uH |
12.00 |
7.9 |
0.008 |
|
OB2203HT-█ |
15 uH |
11.30 |
9.6 |
0.009 |
|
OB2204HT-█ |
18 uH |
10.80 |
11.3 |
0.010 |
|
OB2205HT-█ |
22 uH |
10.30 |
13.4 |
0.011 |
|
OB2206HT-█ |
27 uH |
9.80 |
16.0 |
0.020 |
|
OB2207HT-█ |
33 uH |
7.40 |
22.6 |
0.022 |
|
OB2208HT-█ |
39 uH |
7.10 |
25.0 |
0.024 |
|
OB2209HT-█ |
47 uH |
6.70 |
29.3 |
0.026 |
|
OB2210HT-█ |
56 uH |
6.40 |
34.1 |
0.046 |
|
OB2211HT-█ |
68 uH |
4.90 |
45.7 |
0.056 |
|
OB2212HT-█ |
100 uH |
4.40 |
64.0 |
0.098 |
|
OB2213HT-█ |
120 uH |
3.30 |
84.4 |
0.110 |
|
OB2214HT-█ |
150 uH |
3.10 |
102.7 |
0.075 |
|
OB2215HT-█ |
180 uH |
3.80 |
105.9 |
0.083 |
|
OB2216HT-█ |
220 uH |
3.50 |
125.5 |
0.092 |
|
OB2217HT-█ |
270 uH |
3.40 |
149.4 |
0.100 |
|
OB2218HT-█ |
330 uH |
3.30 |
176.8 |
0.180 |
|
OB2219HT-█ |
390 uH |
2.50 |
235.3 |
0.190 |
|
OB2220HT-█ |
470 uH |
2.30 |
275.9 |
0.220 |
|
OB2221HT-█ |
560 uH |
2.20 |
320.1 |
0.230 |
|
OB2222HT-█ |
680 uH |
2.10 |
377.2 |
0.260 |
|
OB2223HT-█ |
820 uH |
2.00 |
441.5 |
0.280 |
|
OB2224HT-█ |
1000 uH |
1.90 |
522.3 |
0.320 |
|
█ Substitute "H" for Horizontal Package or "V" for
Vertical Package |

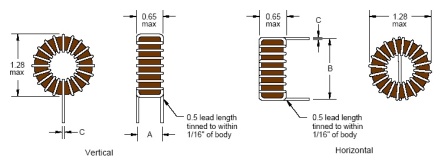

OB2300HT SERIES
Key Benefits
- +200 ºC Rated High Temperature
Series
- Toroidal design minimizes EMI and crosstalk
- UL94V-0 Flammability rating approved
- Designed for Dielectric strength voltage of 500Vrms
- Operating Temp: -55 to +200º C
- Available in Vertical and Horizontal mount designs
- Very low core loss
Applications
EMI Line Filtering for general electronics. Ideal for
use in automotive electronics operating at harsh temperature environments. Also
ideally suited for industrial, PLCC, avionics and ballast applications.
|
Part Number |
Inductance L(uH) @ 1KHz +/- 15% |
Current IDC (Amps) |
Inductance L(uH) @ I Rated +/- 15% |
DCR MAX (Ohms) |
|
OB2301HT-█ |
10 uH |
20.00 |
6.7 |
0.005 |
|
OB2302HT-█ |
12 uH |
19.10 |
7.8 |
0.006 |
|
OB2303HT-█ |
15 uH |
18.00 |
9.5 |
0.006 |
|
OB2304HT-█ |
18 uH |
17.20 |
11.1 |
0.007 |
|
OB2305HT-█ |
22 uH |
16.40 |
13.2 |
0.008 |
|
OB2306HT-█ |
27 uH |
15.60 |
15.7 |
0.013 |
|
OB2307HT-█ |
33 uH |
11.70 |
21.3 |
0.014 |
|
OB2308HT-█ |
39 uH |
11.20 |
24.7 |
0.016 |
|
OB2309HT-█ |
47 uH |
10.70 |
29.0 |
0.017 |
|
OB2310HT-█ |
56 uH |
10.20 |
33.7 |
0.030 |
|
OB2311HT-█ |
68 uH |
7.70 |
45.2 |
0.037 |
|
OB2312HT-█ |
100 uH |
7.00 |
63.1 |
0.040 |
|
OB2313HT-█ |
120 uH |
6.70 |
73.9 |
0.071 |
|
OB2314HT-█ |
150 uH |
5.00 |
101.4 |
0.078 |
|
OB2315HT-█ |
180 uH |
4.80 |
118.9 |
0.054 |
|
OB2316HT-█ |
220 uH |
5.80 |
123.8 |
0.060 |
|
OB2317HT-█ |
270 uH |
5.50 |
147.2 |
0.067 |
|
OB2318HT-█ |
330 uH |
5.20 |
174.1 |
0.072 |
|
OB2319HT-█ |
390 uH |
5.00 |
200.2 |
0.130 |
|
OB2320HT-█ |
470 uH |
3.80 |
271.4 |
0.140 |
|
OB2321HT-█ |
560 uH |
3.60 |
314.8 |
0.150 |
|
OB2322HT-█ |
680 uH |
3.40 |
370.7 |
0.270 |
|
OB2323HT-█ |
820 uH |
2.60 |
500.9 |
0.300 |
|
OB2324HT-█ |
1000 uH |
2.40 |
593.6 |
0.350 |
|
█ Substitute "H" for Horizontal Package or "V" for
Vertical Package |
|
