 OCM1206 SERIES

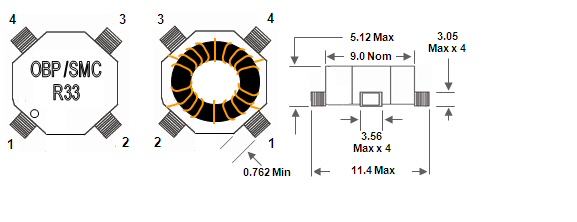

SMD TOROIDAL COUPLED INDUCTOR /
ISOLATION TRANSFORMER
Key Benefits
- Solder Heat Resistance: 260 º C
@ 30 seconds
- Operating Temp: - 40 to + 85º C
- Temp Rise = 35º C @ Irms TYP
- L drops 10% @ Isat

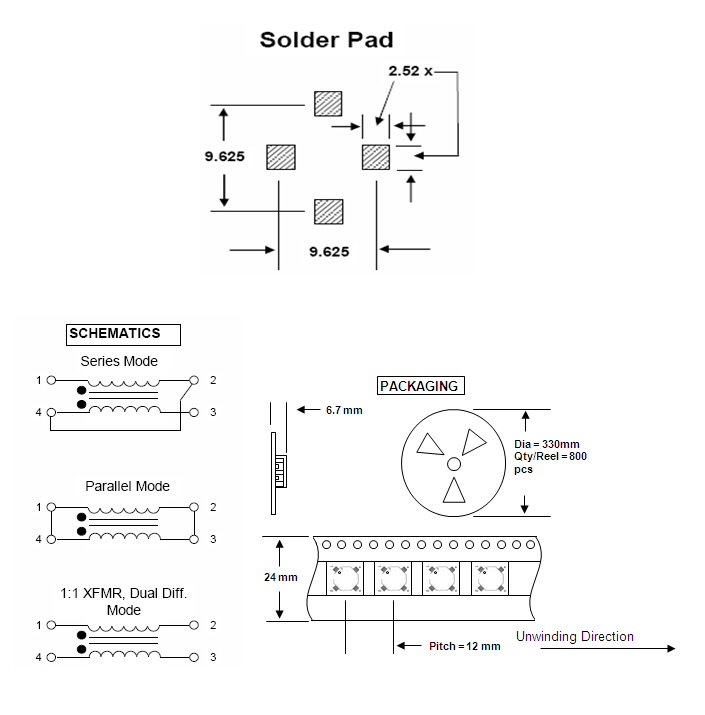

- Parallel, Series or Transformer Mode
- Hipot = 500 Volts
- Spec Ratings @ 25º C

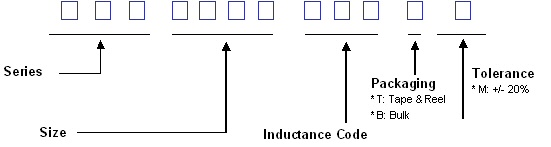

PART NUMBERING
|
|
PARALLEL, 1:1 |
SERIES,
1:1 |
|
Part Number |
OCL (uH) |
Irms (A) |
DCR Ohms Max |
OCL (uH)
|
Irms (A) |
DCR Ohms Max |
|
OCM1206-R33TM |
.402uH |
10.0 |
0.0037 |
1.610uH |
4.98 |
0.0150 |
|
OCM1206-R68TM |
.752uH |
9.00 |
0.0046 |
3.010uH |
4.48 |
0.0185 |
|
OCM1206-1R2TM |
1.18uH |
7.26 |
0.0070 |
4.7uH |
3.63 |
0.0282 |
|
OCM1206-2R3TM |
2.3uH |
5.64 |
0.0120 |
9.210uH |
2.82 |
0.0470 |
|
OCM1206--4R7TM |
4.7uH |
4.27 |
0.0200 |
18.80uH |
2.13 |
0.0820 |
|
OCM1206-8R0TM |
7.940uH |
3.37 |
0.0300 |
31.77uH |
1.69 |
0.0130 |
|
OCM1206-100TM |
10.58uH |
2.84 |
0.0460 |
42.30uH |
1.42 |
0.1830 |
|
OCM1206-150TM |
15.23uH |
2.07 |
0.0870 |
60.91uH |
1.03 |
0.3480 |
|
OCM1206-200TM |
20.73uH |
1.71 |
0.1270 |
82.91uH |
0.86 |
0.5070 |
|
OCM1206-250TM |
24.86uH |
1.46 |
0.1730 |
99.45uH |
0.73 |
0.6930 |
|
OCM1206-330TM |
34.26uH |
1.22 |
0.2490 |
137.1uH |
0.61 |
0.9950 |
|
OCM1206-500TM |
51.18uH |
0.99 |
0.3810 |
204.7uH |
0.49 |
1.5240 |
|
OCM1206-680TM |
67.67uH |
0.92 |
0.4370 |
271.5uH |
0.46 |
1.7490 |
|
OCM1206-101TM |
99.45uH |
0.74 |
0.6860 |
397.8uH |
0.37 |
2.7450 |
|
OCM1206-151TM |
147.4uH |
0.67 |
0.8320 |
589.6uH |
0.33 |
3.3290 |
|
OCM1206-201TM |
198.6uH |
0.62 |
0.9630 |
794.3uH |
0.31 |
3.8540 |
|
OCM1206-301TM |
300.8uH |
0.56 |
1.1810 |
1203uH |
0.28 |
4.7260 |
|
|
|
Reel Size is 800 pieces
 |
